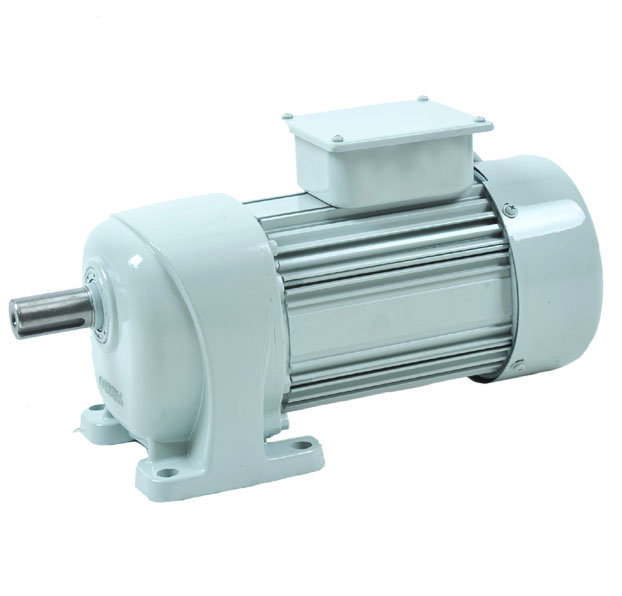

Horizontal Series Gear Motors

■ Widely used in parking equipment, such as stereo garage.

■ Electrical Motor Characters:

    Small in size,      Low exlectric consumption,      Low noise

    Insulator Class: B Class

    Proctection Class: IP44 mesaures up with IEC34-5

    At rated voltage, rating current down start, starting torque is rating torque of 280-320%.

■ Brake Efficiency: Brake system supported by TSB or SBV electric-magnetic brake technology, with less than 0.02 second

    response time.

■ Manual Release Operation: Easy to operate, Equiped with inside safe hand motion release equipment.

■ Gears: High quality alloy steel, hard gear surface to ensure the gear duration capability and load capacity, precision class:

    DIN ISO 1328

■ Noise level: 65Dba,  Motor temperature: less than 65 degree (Environment temperature 20 degree)

■ Surcharge Performance: At the rating rotating speed, surcharge 50%, reducer can operate 30 min. normally.
